[Mini Bluetooth Power Amplifier]The Updated Amplifier Provides 50W+50W Dual Channel Stereo Output with The Upgraded Chip TPA3116. Impedance: 4~8 Ohm.

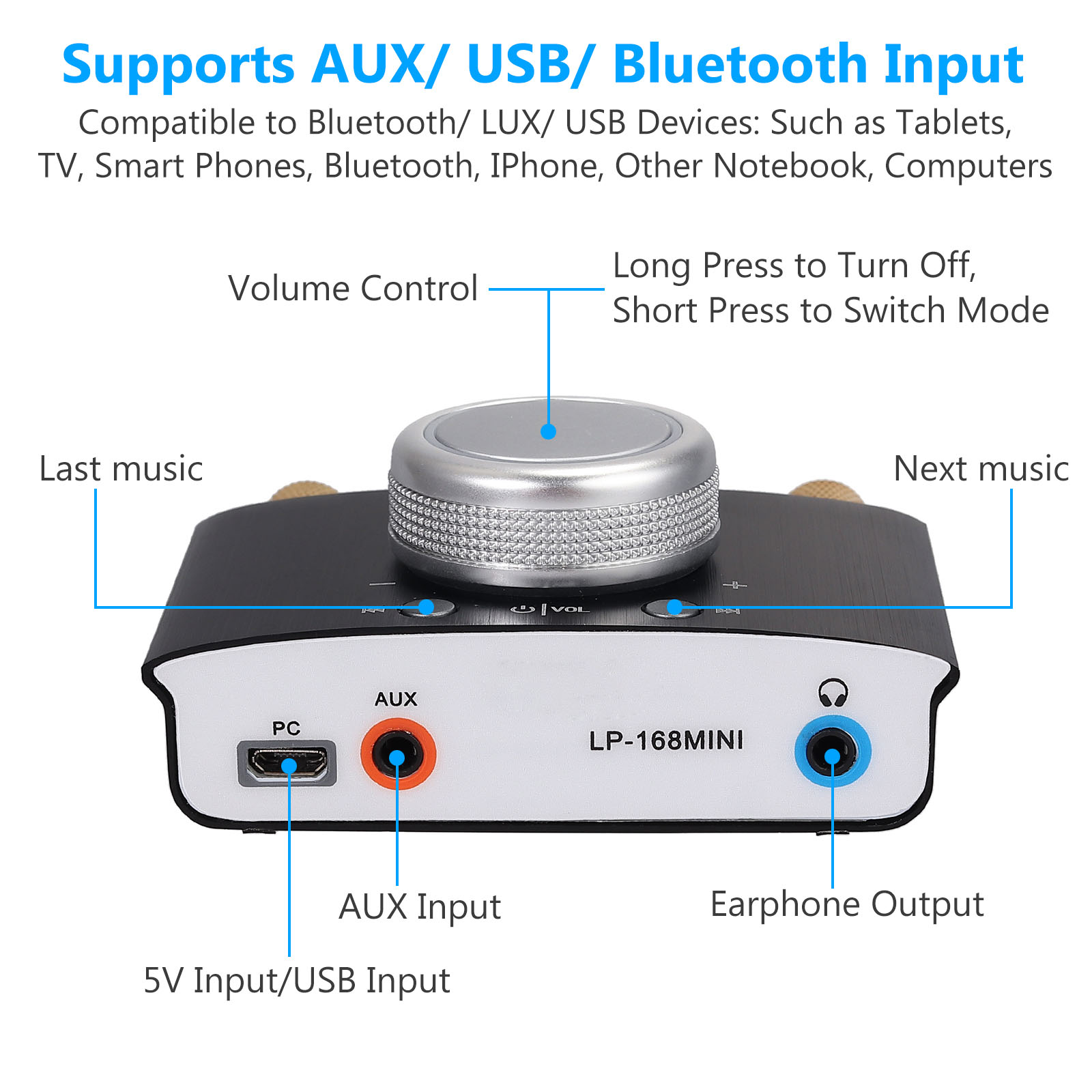

[3 Modes Optional]Supporting AUX/ USB/ Bluetooth Input. But The AMP Module Can be Searched and Connected via Bluetooth when Unplugging Audio Input Line. Insert Audio Input Line, Then It Will Auto Switch to Wired Input Mode, Bluetooth Function Will be Lost.
[Wide Compatibility]Bluetooth 4.2 Audio Transmitter Can be Widely Applied to Various Tablet PC, TV, Smartphone, Laptop, iPhone and etc, Versatile and Simple to Use.

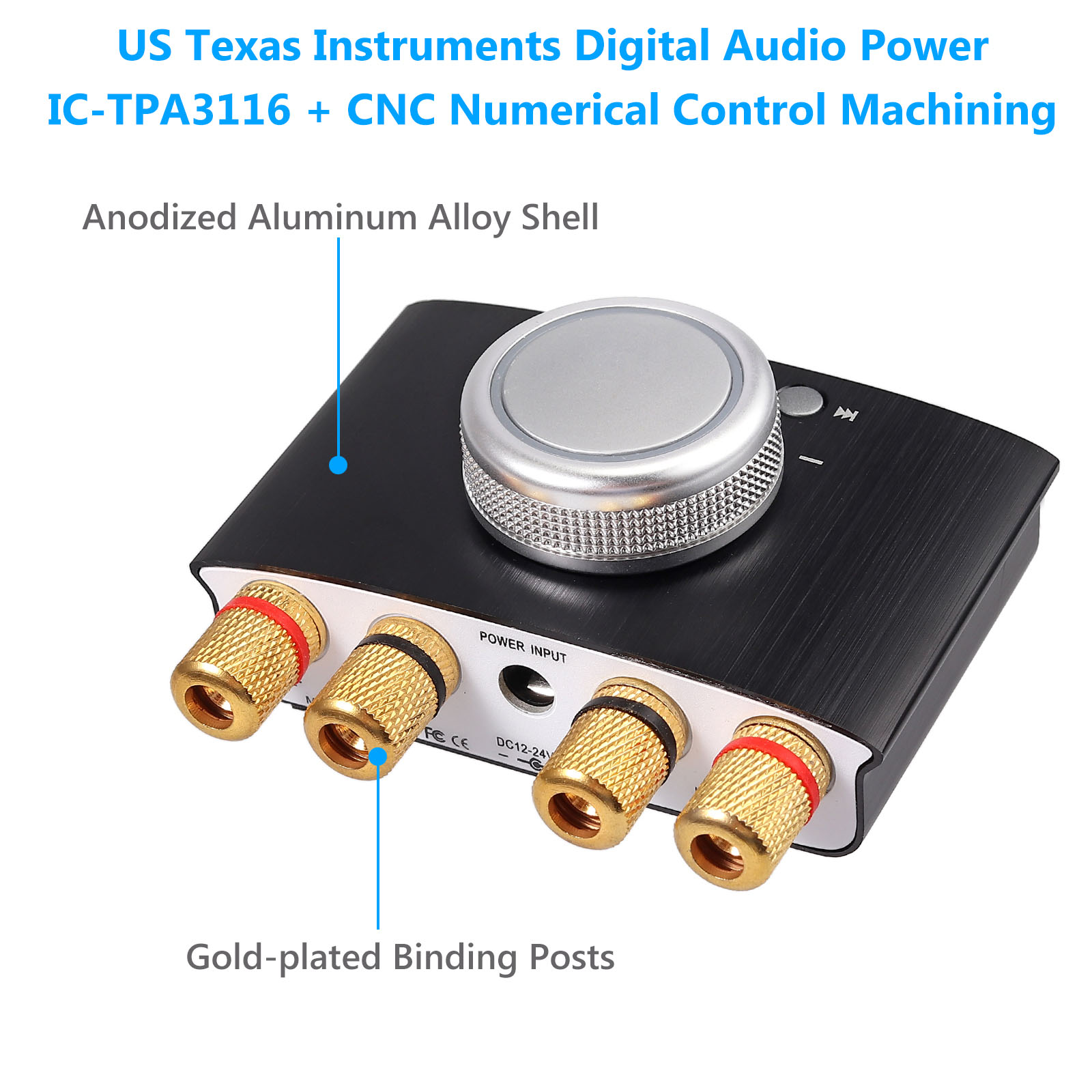

[Mini Size But Powerful]L85 X W70 X H37 (mm), CNC Numerical Control Machining, Anodized Aluminum Alloy Shell, Precision Manufacturing.
[Two-color LED Indication]Working Mode Automatic Switching. Blue Light is Bluetooth Mode, Red Light is AUX Plug or Micro USB Plugged in.
Product characteristics:
1.Adopting US Texas Instruments Digital Audio Power IC-TPA3116
2.Two-color LED aperture working status indication
3. Audio transmission using version 4.2 Bluetooth,high quality assurance
4.With the function of PC sound card,the music can be played directly through the USB line inserted directly into the PC
5.With low noise headphone amplifier drive circuit
6.Working mode automatic switching
7.CNC numerical control machining,anodized aluminum alloy shell,precision manufacturing

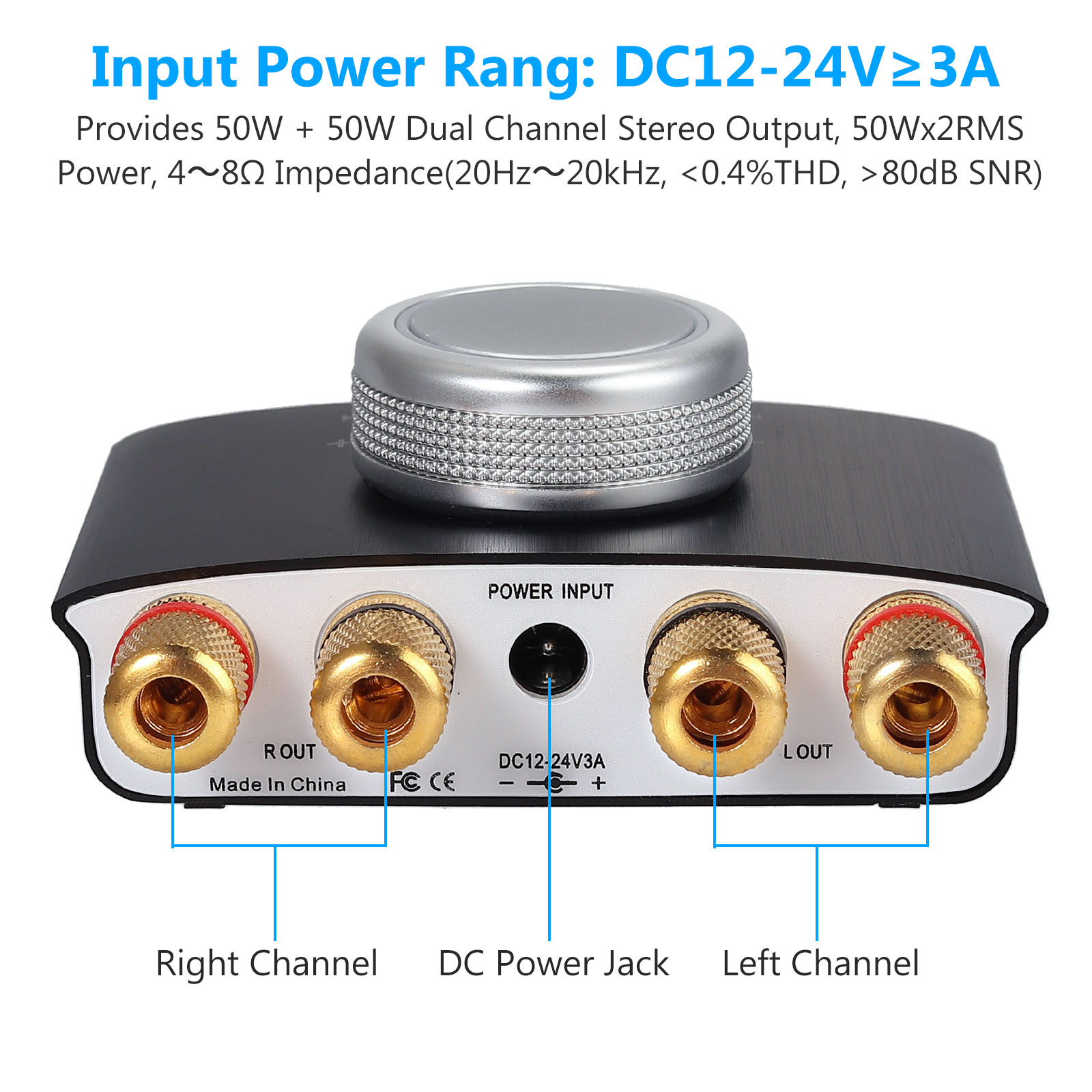

Product specification:
Product model: LP-168mini
Input power: DC12-24V3A
Output power: 50W2RMS
Speaker impedance: 48
Frequency response: 20Hz20kHz
Total harmonic distortion 0.4%
SNR: 80dB
Bluetooth name: LP-168mini
Bluetooth edition: 4.2
Bluetooth protocol: AVRCP1.6A2DP1.3
Size(mm)L85 X W70 X H37
Forward transmission distance: 10m
Package Includes:
1 * Digital Amplifier
1 * 3.5mm AUX Cable
1 * RCA Cable
1 * USB Cable
1 * Power Supply
1 * English Manual
